Creation of .PRQ Files - Installshield

This post describes creation of .PRQ files which can be added to ISM during creation of installers.


Prerequisite editor can be launched directly through "Installshield Prerequisite Editor" shortcut OR from ISM.

Pre-requisite editor launches as shown below, Unique Identifer will be displayed automatically

Under the Conditions section, specify the condition to be evaluated for the pre-requisite to run. Depending upon the condition selected Properties get changed

In "Files to Include" section, specify the pre-reqs files which are to be executed.

In "Applications to Run" section, select the application from drop down list and provide command line arguments to be used while installing the pre-req.

in "Behavior" section, choose the options which are required.

In "Dependencies" section, specify if this installation has any other pre-requisites.

Once all the inputs are provided, Go To File-> SaveAs and save the .PRQ file in desired location.

Installshield 2012 Suite - Chaining Application Installations

Installshield has introduced new feature in v2012 i.e., to chain application installations. EXEs or MSIs can be clubbed together as a suite which makes it easier to perform installation of applications which contain more than one MSI/EXE.

Steps to create a Installshield Suite:

1. Launch Installshield and select "Create a new project"


2. Select "Suite Project"

3. In Packages section, select the installer that needs to be run

4. Select the MSI that needs to be added to suite

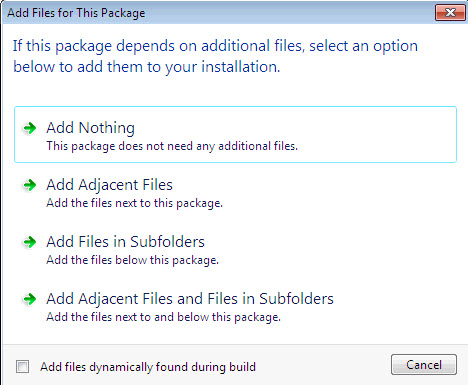

5. Select the appropriate option in the following screen depending upon the application.

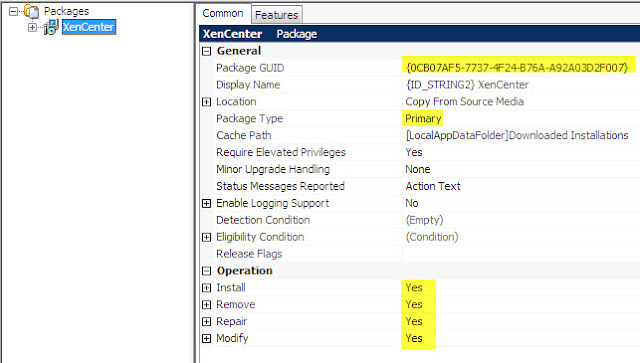

6. Once the MSI is imported into suite, all the parameters will be populated automatically as highlighted in the below snapshot:

7. In the same procedure add 2nd MSI

8. Once the sequencing of installers is completed, Go to Releases and Build the suite to generate the output

9. Output Setup.exe acts like a bootstapper which can be used to install the installers that were added inside Installshield Suite.

Add Scheduled Task to MSI - Installshield 2012 Spring Features

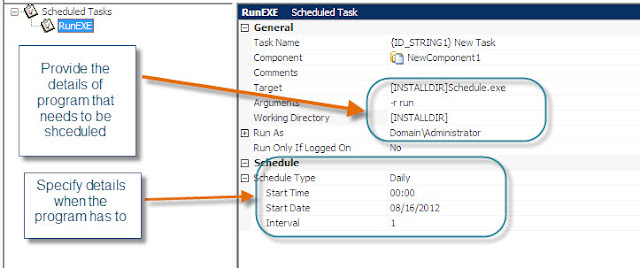

New Feature in Installshield 2012 Spring is creation of Scheduled Task.


Within the MSI its now possible to create a scheduled tasks which will be installed along with application and runs depending upon the schedule parameters set.


Please find detailed snapshot:

SCCM 2007 Online Training - September 2012 Batch

AppREPACK announces in depth training on SCCM 2007 R2, Please find course contents below:

For more details please visit www.apprepack.in or contact Ajun@Apprepack.in
SCCM 2007 - Course Contents

	Why SCCM ?
	Software distribution
	Security updates
	OS Deployment
	Inventories
	Baselines
	Client management

	Planning SCCM Infrastructure
	Installing Windows Server 2008
	Installing Active Directory and DNS
	Installing and Configuring DHCP
	Configuring WDS
	Configuring Accounts
	Installing and configuring IIS features
	Installing and configuring SQL Server 2008
	Installing and configuring WSUS 3.0 SP2
	Configuring Active directory – Extending Schema
	Installing SCCM 2007
	Configuring client agent accounts

	Hardware and Software requirements
	VMware workstation based VMs with Windows Server 2008 R2 Server , Windows 7 / XP client

	Configuring SCCM after install
	Site Boundaries.
	Client Installation Methods
	Discovery Methods
	Site Systems

	Site System Roles
	Distribution point
	Reporting point
	Server locator point
	Branch Distribution point
	Fallback status point
	PXE Service point
	Software update point
	State Migration point
	System health validator
	Management point

	Security Updates
	WSUS integration
	Update list
	Deployment packages and Templates
	Reports
	Best Practices

	Software Distribution
	Package creation
	Updating distribution points
	Programs
	Advertisements
	Task sequences

	Operating System Deployment
	Preparing the environment for Configuration manager OSD
	Installing and configuring Configuration manager PXE Service point
	Preparing OS image for deployment
	Preparing for bare metal OS deployment
	Deploying OS image to target computer
	Troubleshooting

	Inventories
	Hardware inventory
	Software inventory
	Software metering
	Licensing
	Reports

	Desired Configuration Management
	Configuring base lines , configuration Items
	Isolating the resources
	Reports

	Client Management
	Remote tools
	Wake on LAN
	Power management
	Out of Band management
